For years, LCD has been the dominant technology in commercial display applications—from retail signage to corporate meeting rooms.
However, this long-standing assumption is being fundamentally challenged.
A growing number of enterprises are now adopting fine-pitch LED displays powered by COB (Chip-on-Board) and MIP (Micro LED in Package) technologies. This shift is not driven by brightness improvements, but by advances in visual consistency, structural design, and long-term operational value.
Key insight: The display market is shifting from “functional adequacy” to “premium visual experience.”
What Are COB and MIP?
COB (Chip-on-Board)
COB is a packaging technology where LED chips are directly mounted onto a PCB and encapsulated into a continuous surface layer.
Key characteristics:
COB is widely used in large-format, high-end LED installations such as control rooms and corporate display walls.
MIP refers to a micro-packaging approach where ultra-small LED chips are first encapsulated into standardized units before being assembled into LED displays.
Key characteristics:
Industry note: MIP is often considered either a sub-category or an evolution of advanced LED packaging technologies, with its core advantage being scalable ultra-fine pitch production.
Why Traditional LED Could Not Replace LCD
Before COB and MIP matured, LED technology faced clear limitations in indoor and high-precision environments:
As a result, LCD remained the preferred solution for indoor applications requiring close viewing and high image fidelity.

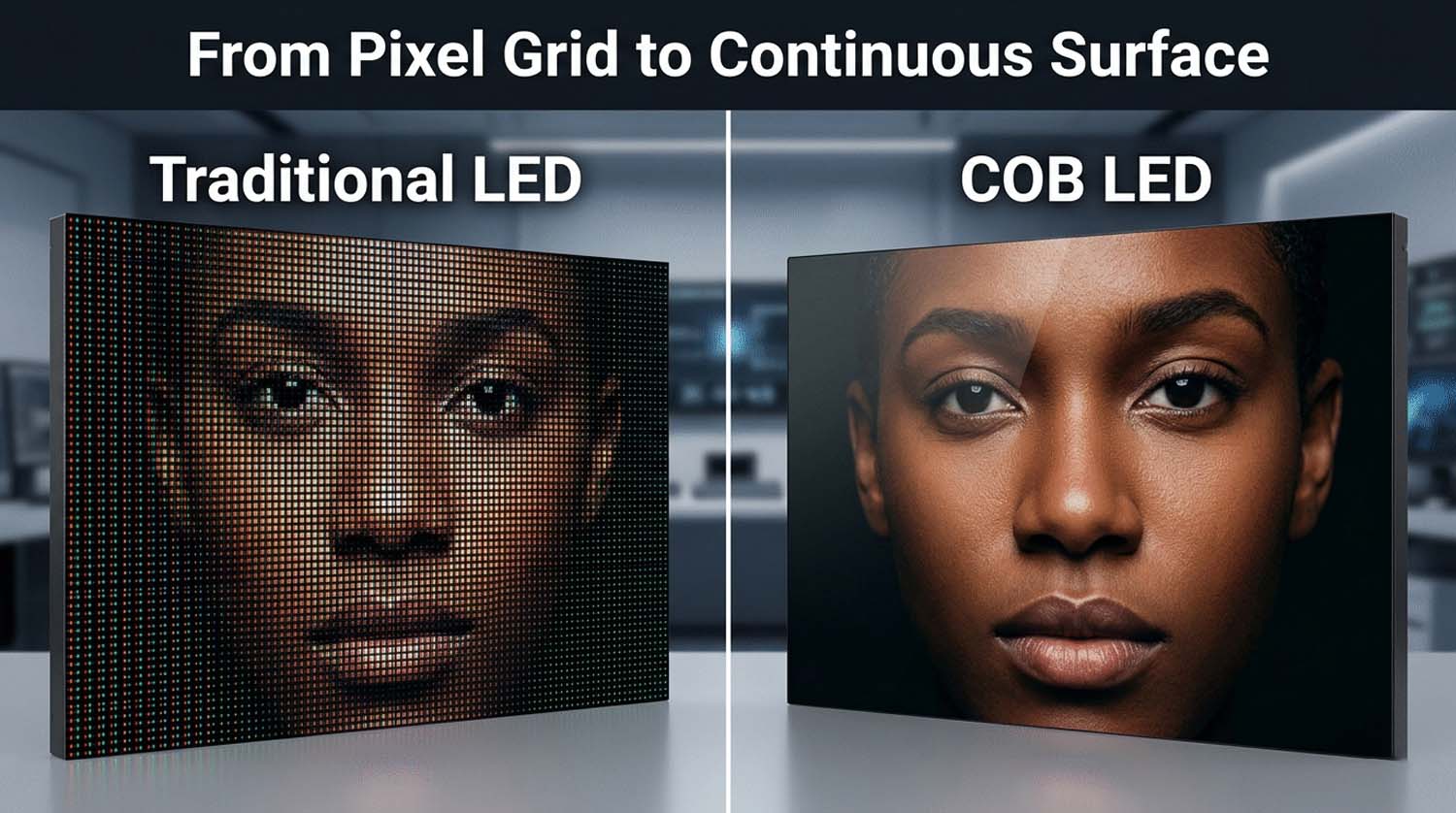

From Pixel Grid to Continuous Visual Surface
COB technology fundamentally changes how LED displays are perceived.
Instead of visible pixel grids, COB creates a continuous, unified surface.
Result: LED is no longer perceived as individual light points, but as a seamless visual canvas.
From Long Distance to Close-Range Precision
MIP technology pushes LED into ultra-fine pixel pitch ranges such as P0.9 and P0.7.
This enables:

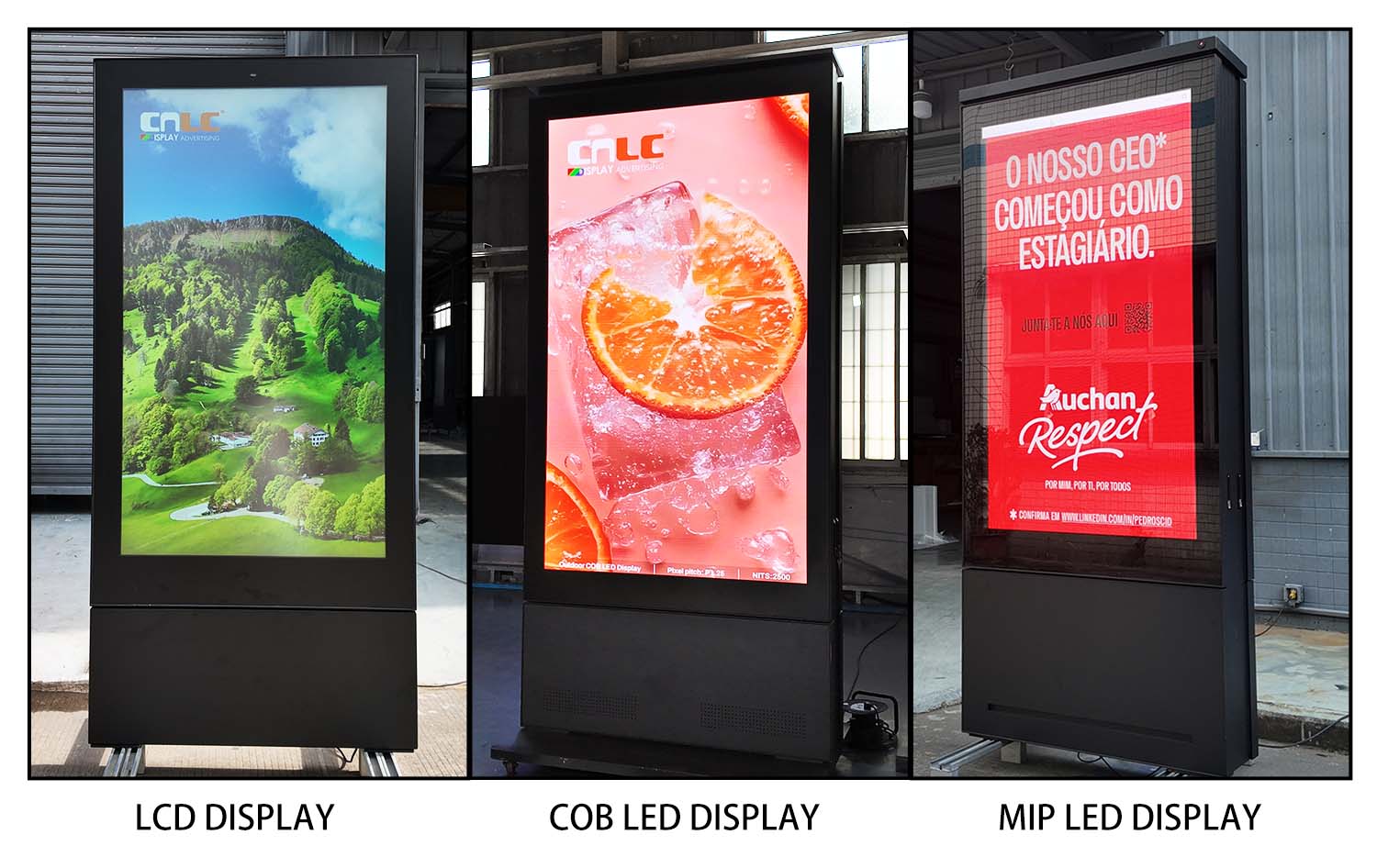

LCD vs COB vs MIP
| Feature | LCD | COB LED | MIP LED |
| Seamless Display | No | Yes | Yes |
| Close Viewing Comfort | Good | Very Good | Excellent |
| Contrast Performance | Medium | High | High |
| Structural Flexibility | Low | High | High |
| Maintenance Efficiency | Medium | High | High |
| Lifespan | ~50,000 hours | ~100,000 hours | ~100,000 hours |
Key takeaway: COB enhances surface integrity, while MIP extends resolution and application scope.

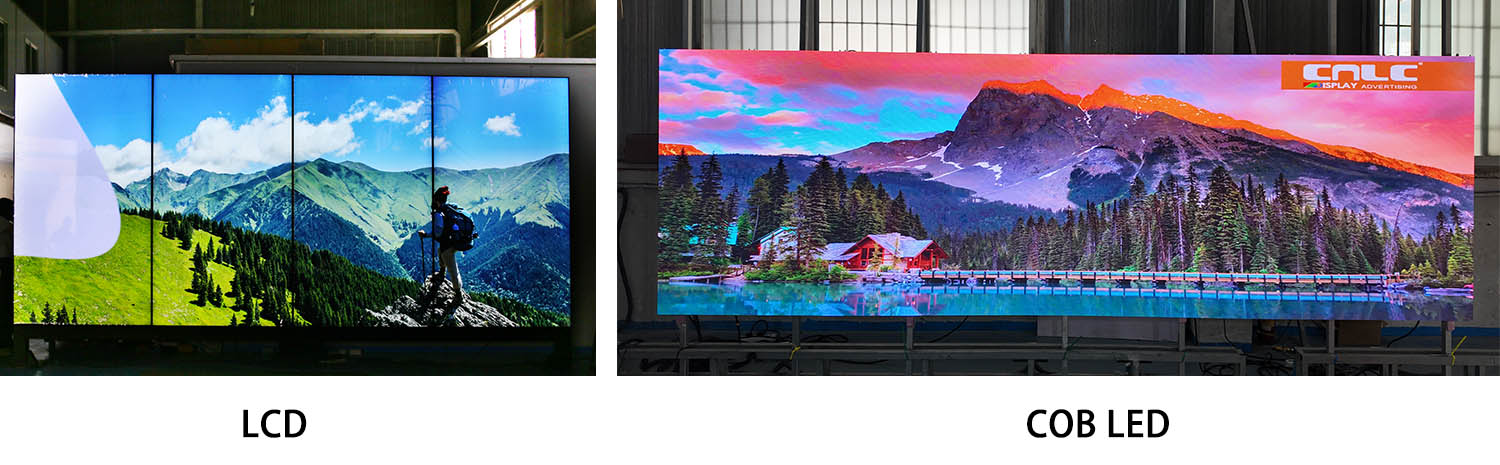

LCD video walls always contain physical seams, even with ultra-narrow bezels.
LED displays eliminate this limitation entirely.
In premium environments, seamless visuals are now a baseline expectation.
LCD is constrained by fixed panel sizes (55”, 65”, 86”).
LED can be customized into:
This transforms displays from hardware into spatial design elements.
Decision-making is increasingly based on total cost of ownership (TCO), not initial cost.
Key comparisons:
LED provides stronger long-term operational value in high-utilization environments.
A luxury fashion brand implemented a 12-meter COB LED wall in its flagship retail store to replace multiple LCD panels.
Results:
This demonstrates COB LED’s advantage in high-end retail environments.
Focus: stability, uniformity, large-area continuity
Focus: resolution density, close viewing comfort
Will LED Replace LCD Completely?
No.
LCD still maintains advantages in:
However, in premium, large-scale, and design-driven environments, fine-pitch LED is rapidly becoming the dominant solution.
Conclusion
The transition from LCD to LED is not simply a technological upgrade—it represents a structural shift in display architecture and application logic.
COB and MIP technologies have enabled LED displays to overcome traditional limitations and enter markets once dominated by LCD.
The key question for businesses is no longer “LCD or LED?”
It is: Which LED technology—COB or MIP—best fits the application scenario?
FAQ
Q1: What is the main difference between COB and traditional LED?
COB integrates LED chips directly onto the board, creating a smoother surface and better durability compared to traditional SMD LED packaging.
MIP is a micro-packaging technology that enables ultra-fine pixel pitches (such as P0.7 and P0.9), making LED suitable for close-range, high-resolution applications.
COB is better for large seamless displays such as control rooms, corporate showrooms, and video walls where uniformity and stability are key.
MIP is ideal for small to medium indoor environments like meeting rooms, retail counters, and applications requiring ultra-high resolution at close viewing distance.
No. LCD will remain in cost-sensitive and small-size applications, but fine-pitch LED is increasingly replacing LCD in high-end and large-format installations.
Because LED offers seamless design, longer lifespan, better scalability, and improved visual consistency, especially with COB and MIP technologies.
