What Goes Into Quality Control for Outdoor LCD Displays?

The quality of an outdoor LCD display depends on more than its LCD panel and other core components. Backlight assembly, optical film installation, electrical assembly, and final product testing all play important roles in the manufacturing process.For outdoor LCD displays, applying consistent quality requirements at every critical production stage is essential for maintaining assembly consistency and product quality.

At CNLC, we integrate quality control throughout the outdoor LCD manufacturing process. Through standardized work procedures, in-process inspections, product testing, and production traceability, we manage quality from component assembly to finished product delivery.

1. Quality Control Throughout the LCD Manufacturing Process

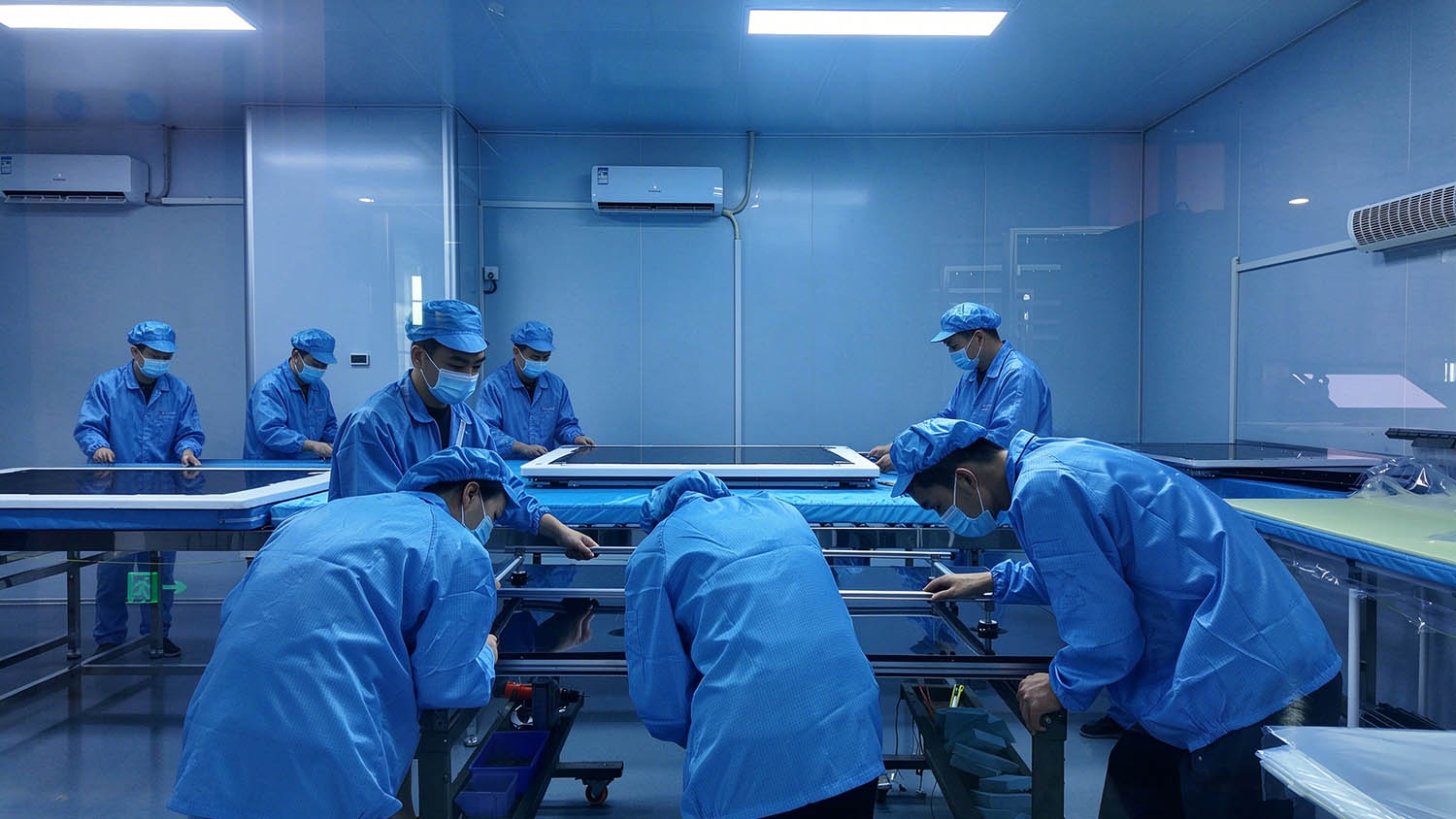

The production of outdoor LCD displays involves several interconnected stages, including backlight and LCM assembly, front frame and display assembly, and electrical assembly and final integration.Quality requirements and inspection checkpoints are established for different production stages. Before a product proceeds to the next stage, the required operations and inspections must be completed, and applicable release criteria must be met.Integrating quality checks into the manufacturing workflow helps identify potential issues early and reduces the risk of nonconforming components or semi-finished products moving into subsequent processes.

Quality control is not limited to final inspection. It is an ongoing process throughout LCD display manufacturing.

2. Standardized Work Procedures and In-Process Inspection

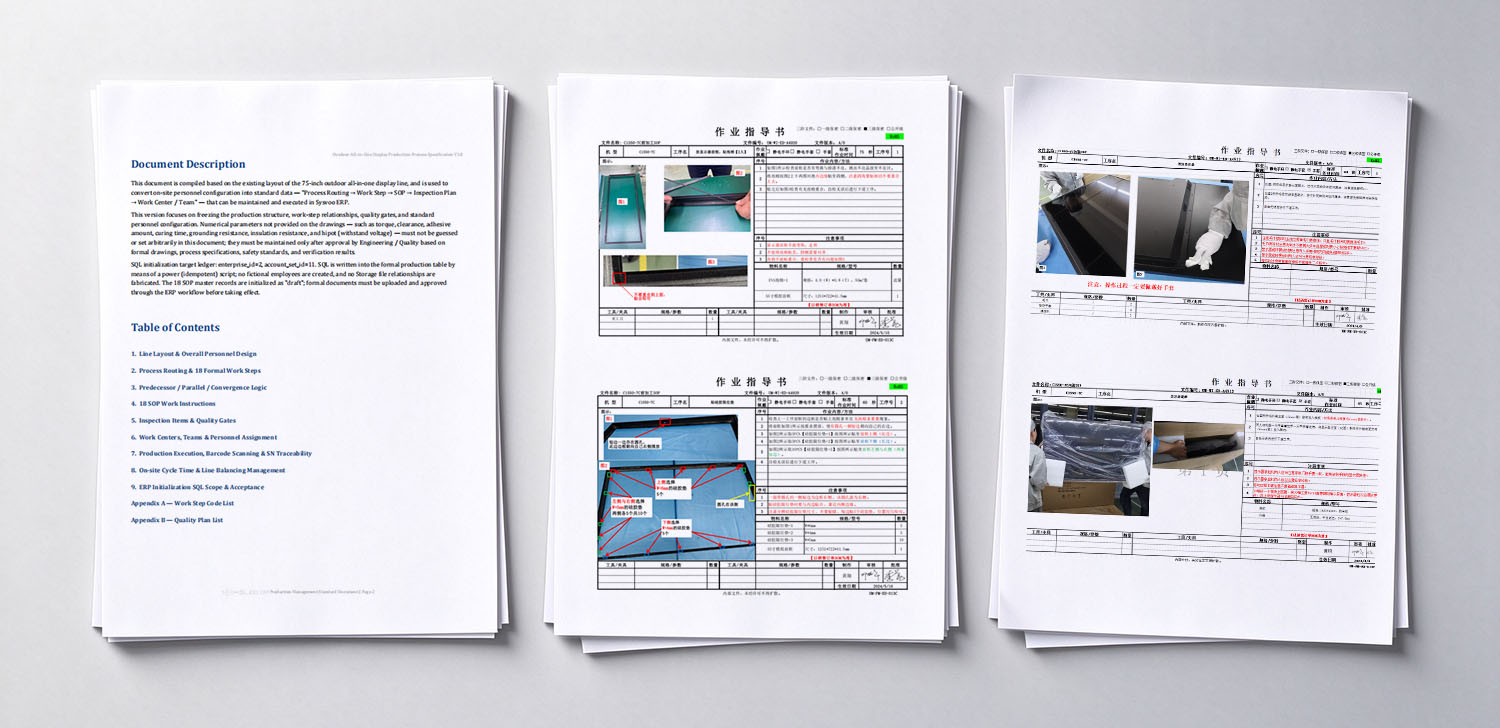

Consistent product quality relies on clear work instructions and practical inspection requirements.During production, Standard Operating Procedures (SOPs) guide key assembly operations. Depending on the requirements of each process, inspections may include routine process checks, 100% inspection, or sampling inspection.Inspection activities cover areas such as LCD backlight components, optical film installation, display assembly, and electrical connections. For example, optical films must be checked for correct sequence, orientation, and cleanliness. Electrical connections require checks for polarity, grounding, and terminal connections.By defining work instructions, inspection items, and acceptance criteria, CNLC helps standardize production operations and reduce excessive reliance on individual experience.

3. Outdoor LCD Display Testing and Final Inspection

After assembly, outdoor LCD displays undergo relevant tests and inspections to evaluate display performance, environmental protection, and electrical performance.Depending on the product configuration and testing requirements, CNLC conducts tests such as brightness testing, solar radiation testing, water resistance testing, dust protection testing, electromagnetic compatibility (EMC) testing, and IK10 impact testing where applicable. These tests help evaluate product performance under the specified test conditions.Packaging protection is also an important part of product delivery. Crate vibration testing can be used to evaluate packaging performance under simulated transportation vibrations and identify potential weaknesses in the protective packaging.Before shipment, finished products undergo the applicable quality checks, which may cover display operation, appearance, and relevant functions. Combining product testing, final inspection, and packaging verification helps identify potential issues before delivery and prepares the equipment for transportation and outdoor use.

4. Production Traceability and Continuous Quality Improvement

Quality management involves more than confirming whether a product meets its requirements. When an issue occurs, relevant production records are also needed to support investigation and analysis.During manufacturing, scan-based operations, process task management, and inspection records help manage key production activities. For designated processes, operation records or photographs may also be retained as required. When a nonconformity is identified, it is handled through the applicable procedures, including corrective rework and reinspection where necessary.Production records can support traceability across process information, work instruction versions, inspection results, rework records, and key material batches. These records provide a basis for investigating issues and reviewing manufacturing processes.

This approach supports not only individual product inspections but also the identification of recurring production issues, providing useful information for process optimization and ongoing quality improvement.

Conclusion: Quality Control Across the Outdoor LCD Manufacturing Process

The reliability of outdoor LCD displays depends on the combined contribution of component quality, standardized assembly, performance verification, and effective production management.

From backlight and LCM assembly to in-process inspection, finished-product testing, and production traceability, CNLC works to apply quality requirements at critical stages of outdoor LCD display manufacturing.

We focus not only on whether the finished product meets its requirements, but also on how it is manufactured, inspected, and delivered.
