Our outdoor LED fixed cabinet offer lightweight, modular design for fast installation and flexible configurations. Ideal for LED displays, billboards, and 3D video walls. Designed for easy front and rear maintenance, these LED fixed cabinet ensure reliable operation and minimal downtime for outdoor advertising screens. Perfect for large-scale installations, including pedestrian bridges or commercial billboards, delivering high-brightness, uniform visuals with long-term durability. Supports creative display solutions, including 90° corners and curved layouts, making it ideal for immersive LED video walls and impactful advertising campaigns.
item número :
CNLC-AU-100ATamanho :
CustomizeBrilho :
5500 cd/m²taxa de resolução :
SMDCor :
Black / Silver / Grey / CustomizeGrau à prova d'água :
IP56

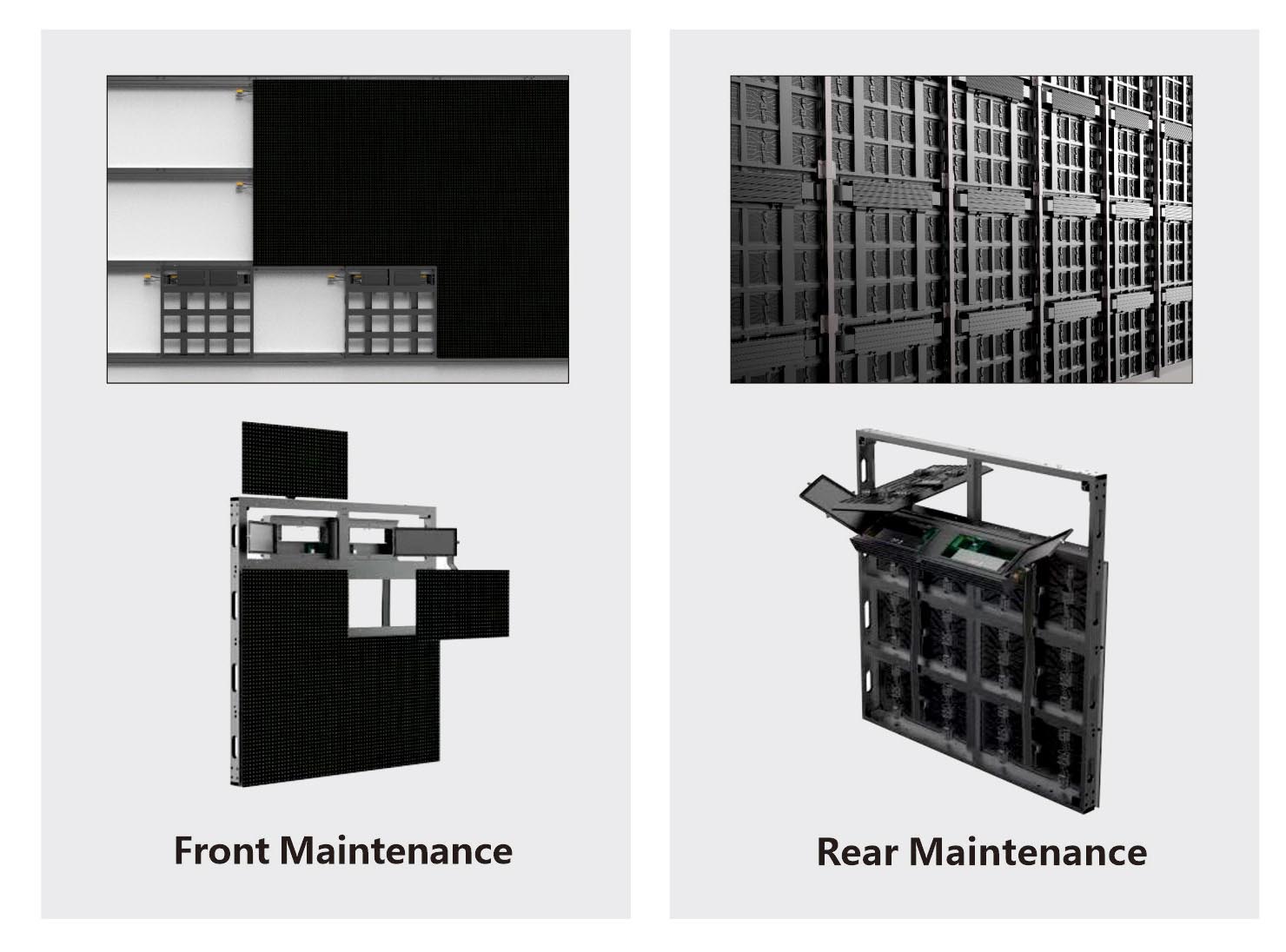

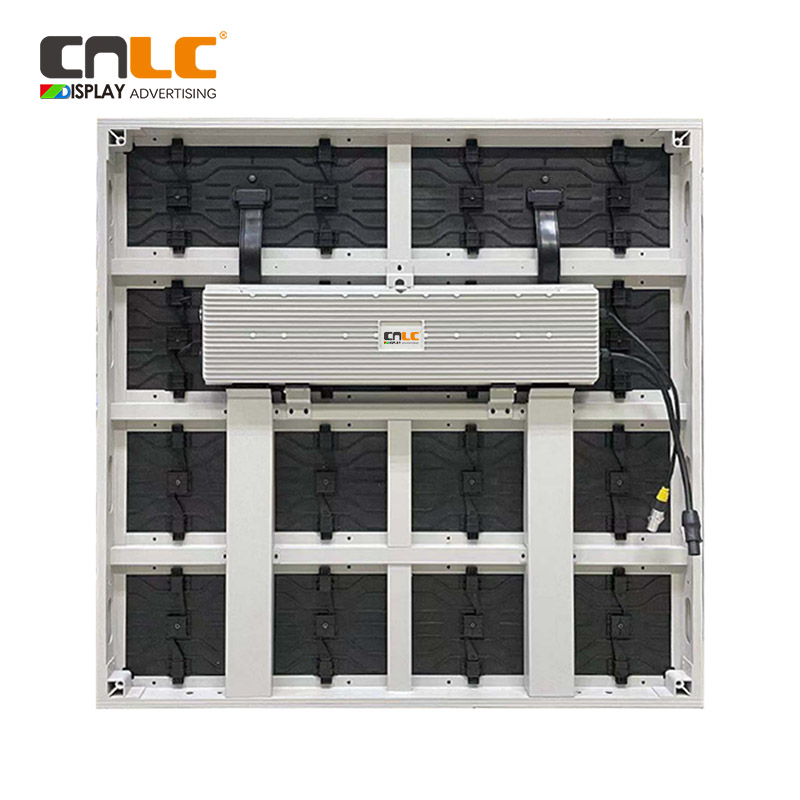

Front & Rear Maintenance for Easy Service
◆ Our outdoor LED fixed cabinet is designed with both front and rear access, allowing technicians to perform LED module replacement and servicing without disassembling the entire unit. This ensures minimal downtime and efficient operation for outdoor LED displays.

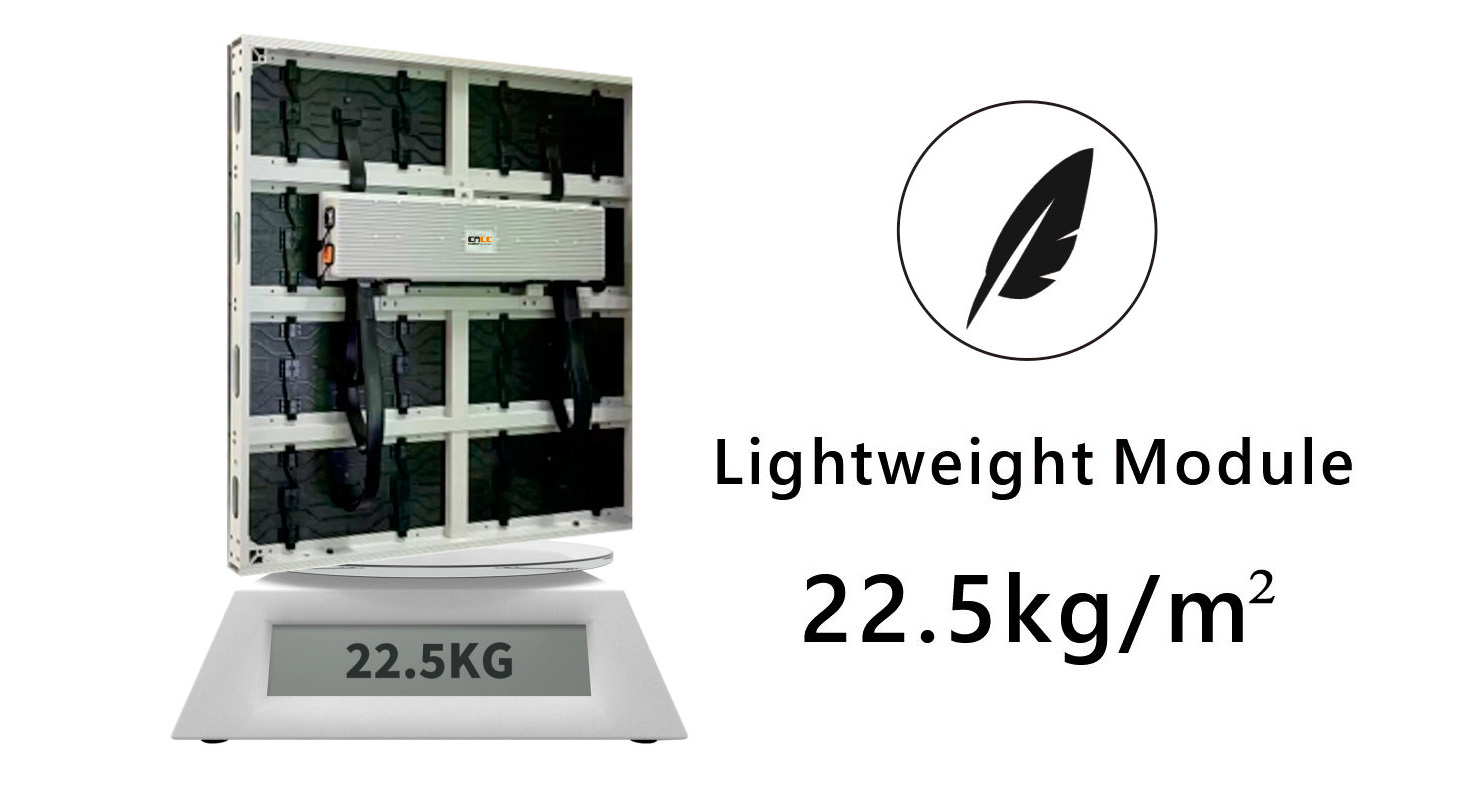

Lightweight Design for Easy Installation
◆ Weighing only 22.5kg per square meter, this LED fixed cabinet offers effortless handling and quick installation. Its lightweight design reduces labor costs and allows flexible placement for large outdoor LED screens.

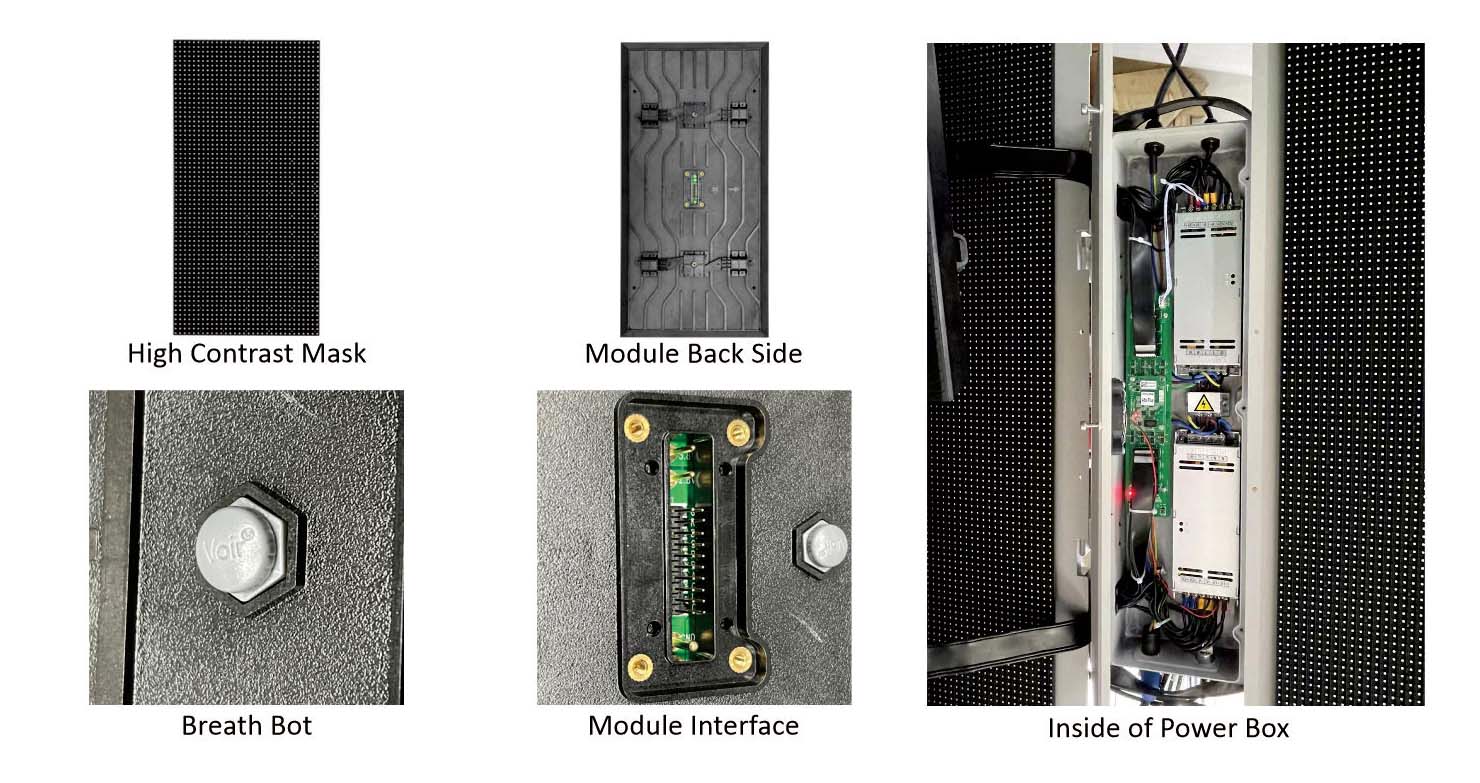

Precision Detailing for Reliability
◆ This outdoor LED fixed cabinet showcases key technical details for optimal performance. The High Contrast Mask enhances image clarity in bright environments. The Module Back Side and Module Interface enable smooth module replacement and reliable connections. Inside the Power Box, components are carefully arranged to guarantee stable and continuous operation for outdoor LED displays.

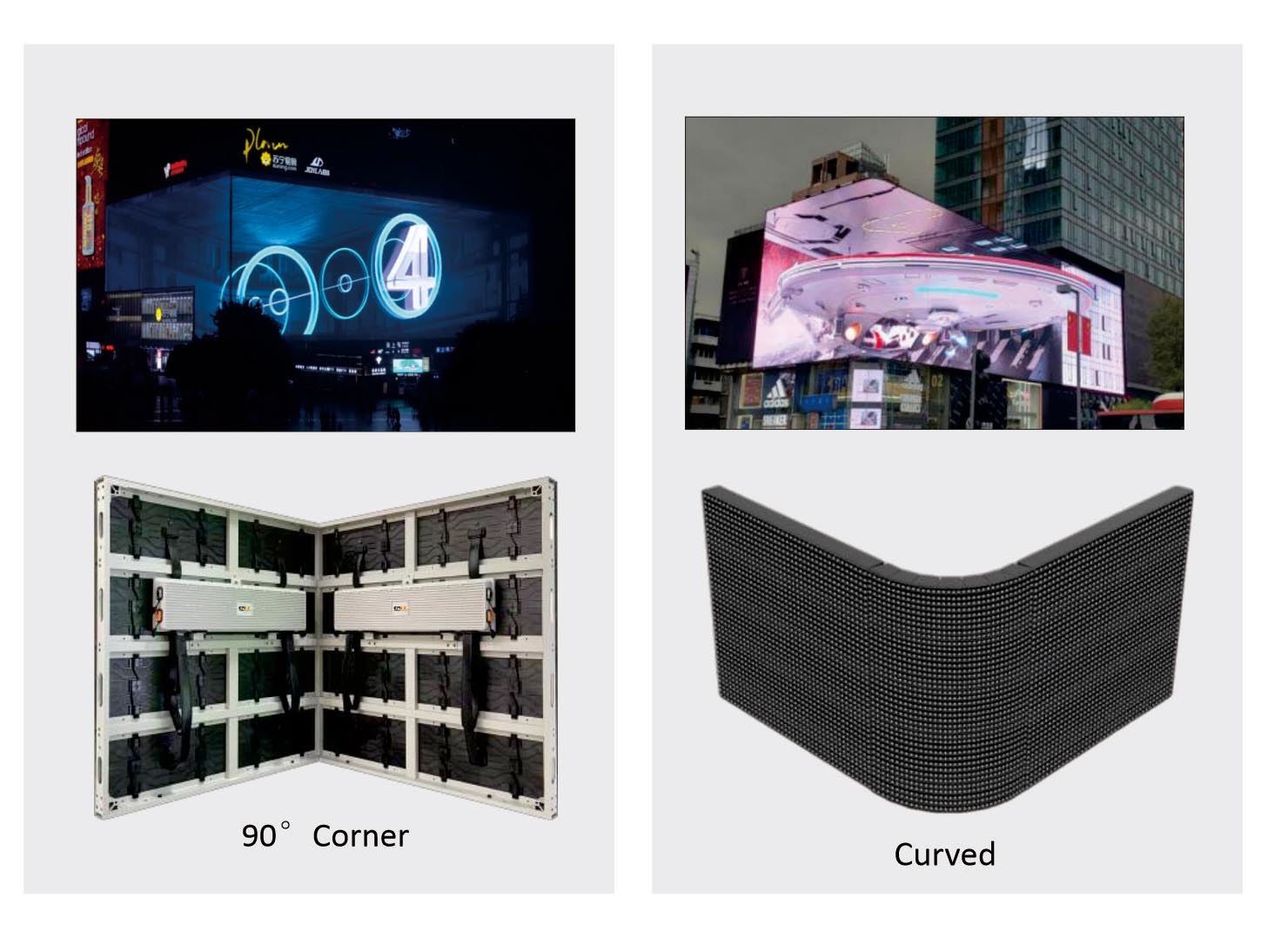

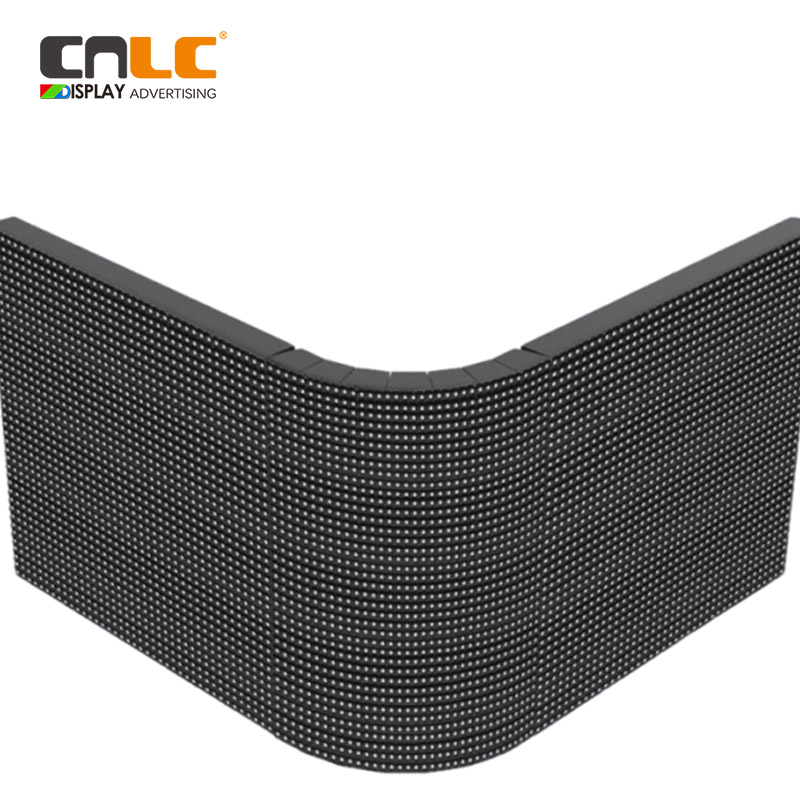

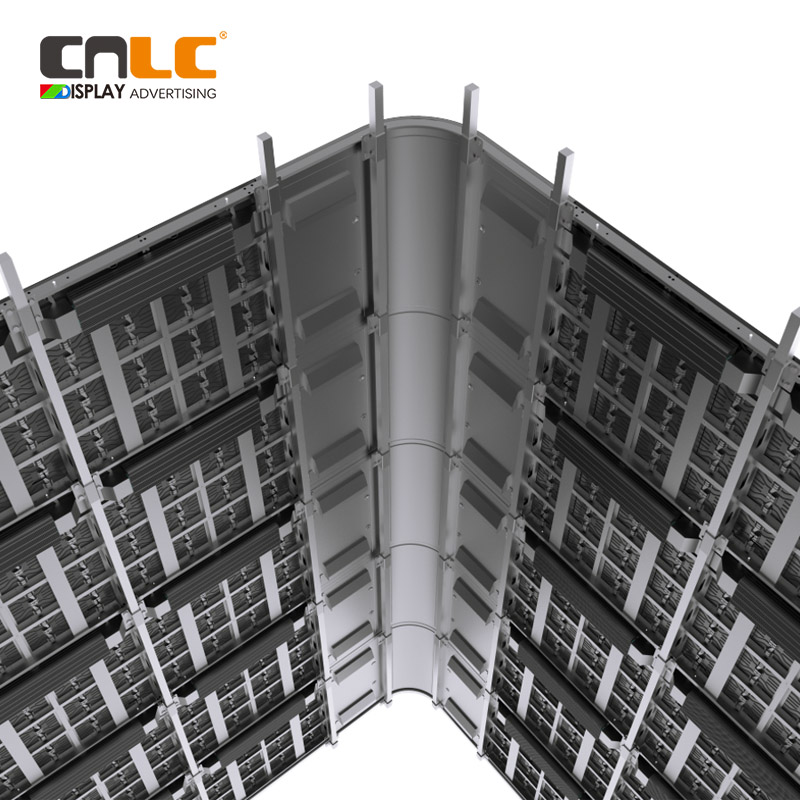

Supports 3D LED Displays
◆ This LED fixed cabinet supports flexible configurations for 3D LED video walls and can accommodate both 90° corners and curved layouts. Perfect for immersive advertising LED screens.

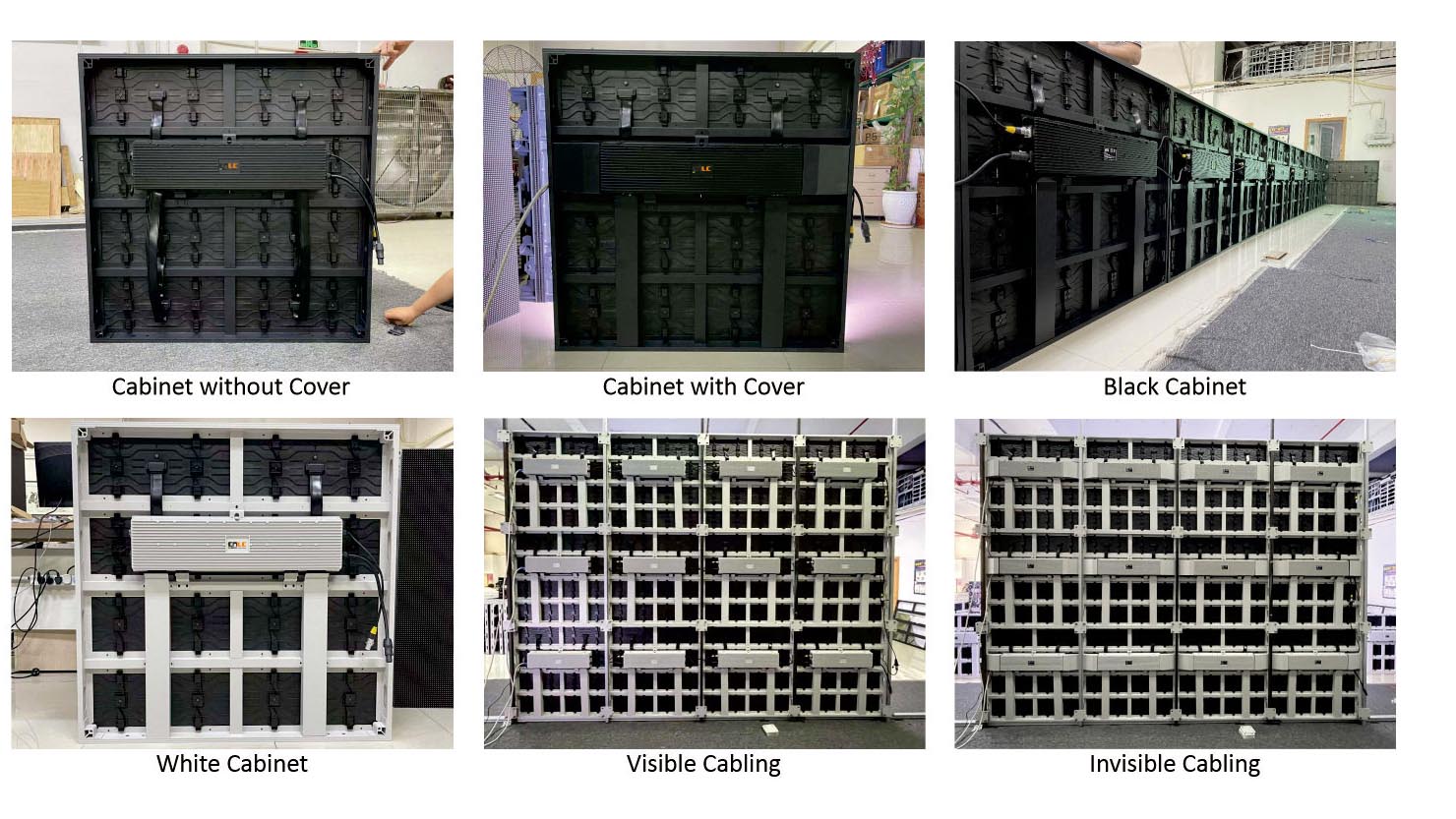

Modular Assembly with Optional Cable Cover
◆ The LED fixed cabinet features a modular design that enables quick assembly. Optional covers can hide cables for a clean look, while open configurations allow easy maintenance of outdoor LED displays.

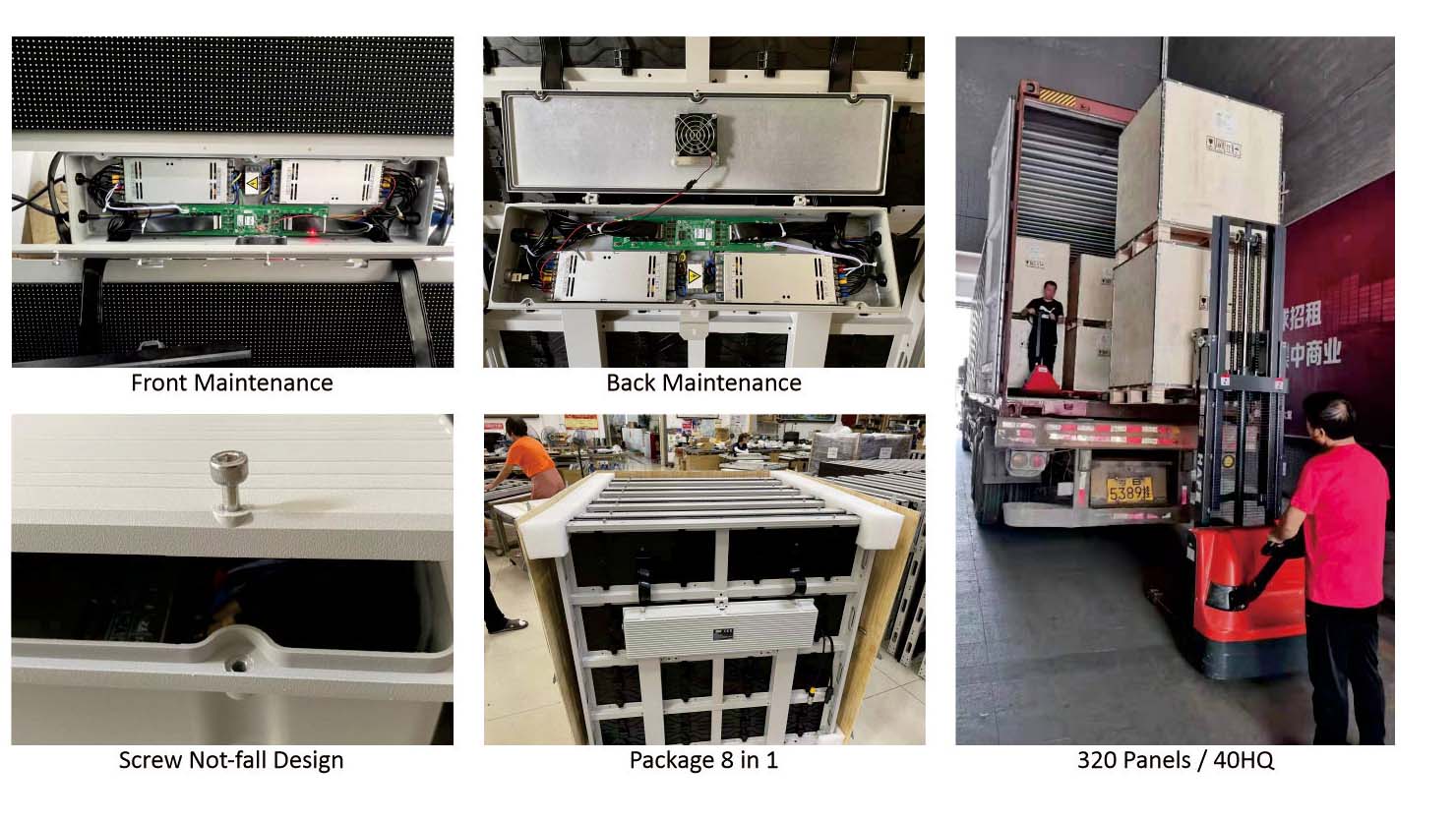

Secure Packaging for Safe Transport
◆ Each LED fixed cabinet is carefully packaged to prevent damage during shipping. This ensures that units arrive safely and ready for installation in outdoor LED screen projects.

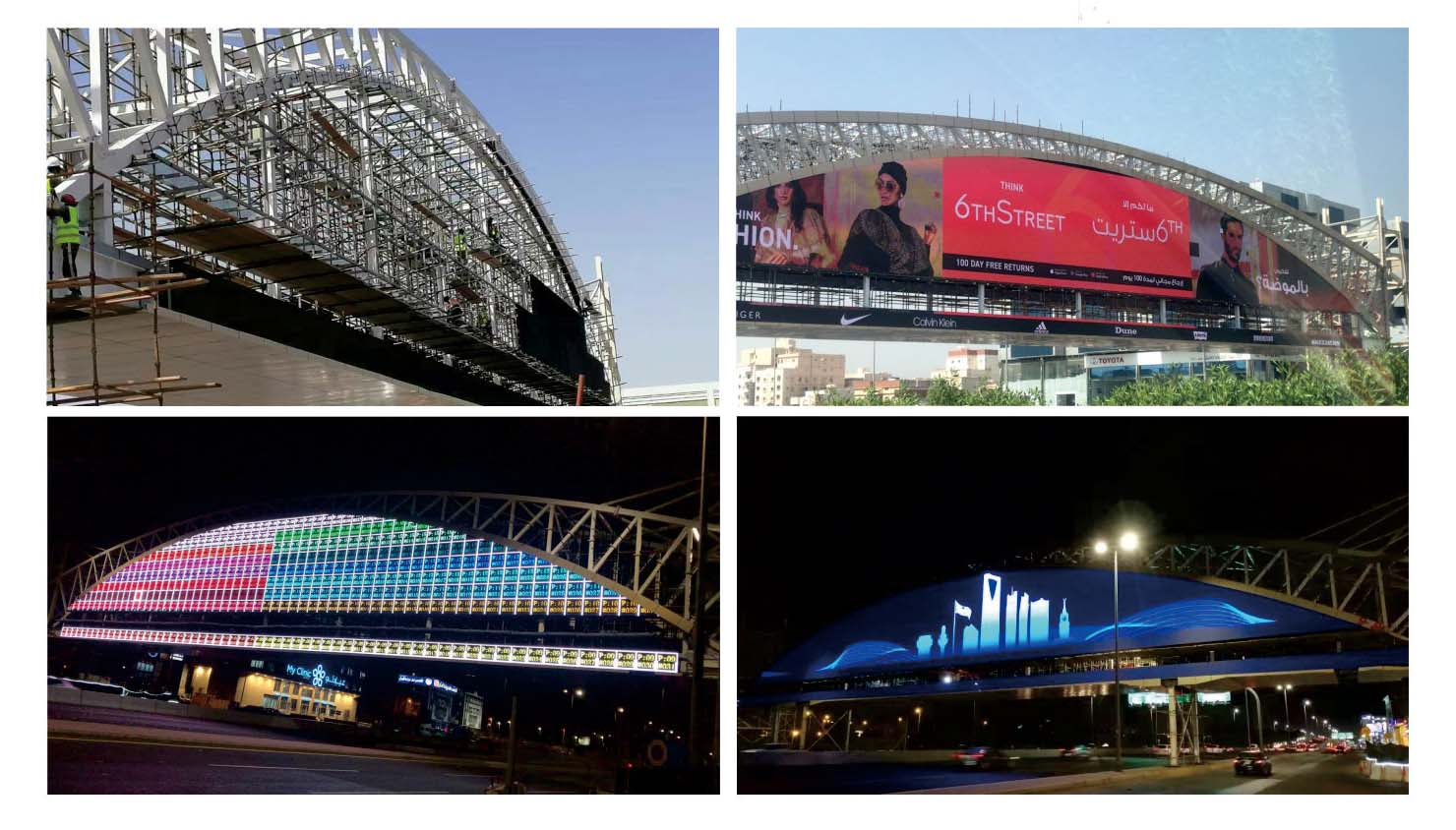

Seamless Large LED Display on Pedestrian Bridge
◆ Multiple outdoor LED fixed cabinets were assembled into a large-scale LED display positioned in the middle of a pedestrian bridge. Its modular structure allows for fast assembly, reducing labor time and ensuring seamless alignment for large LED displays and outdoor advertising screens.

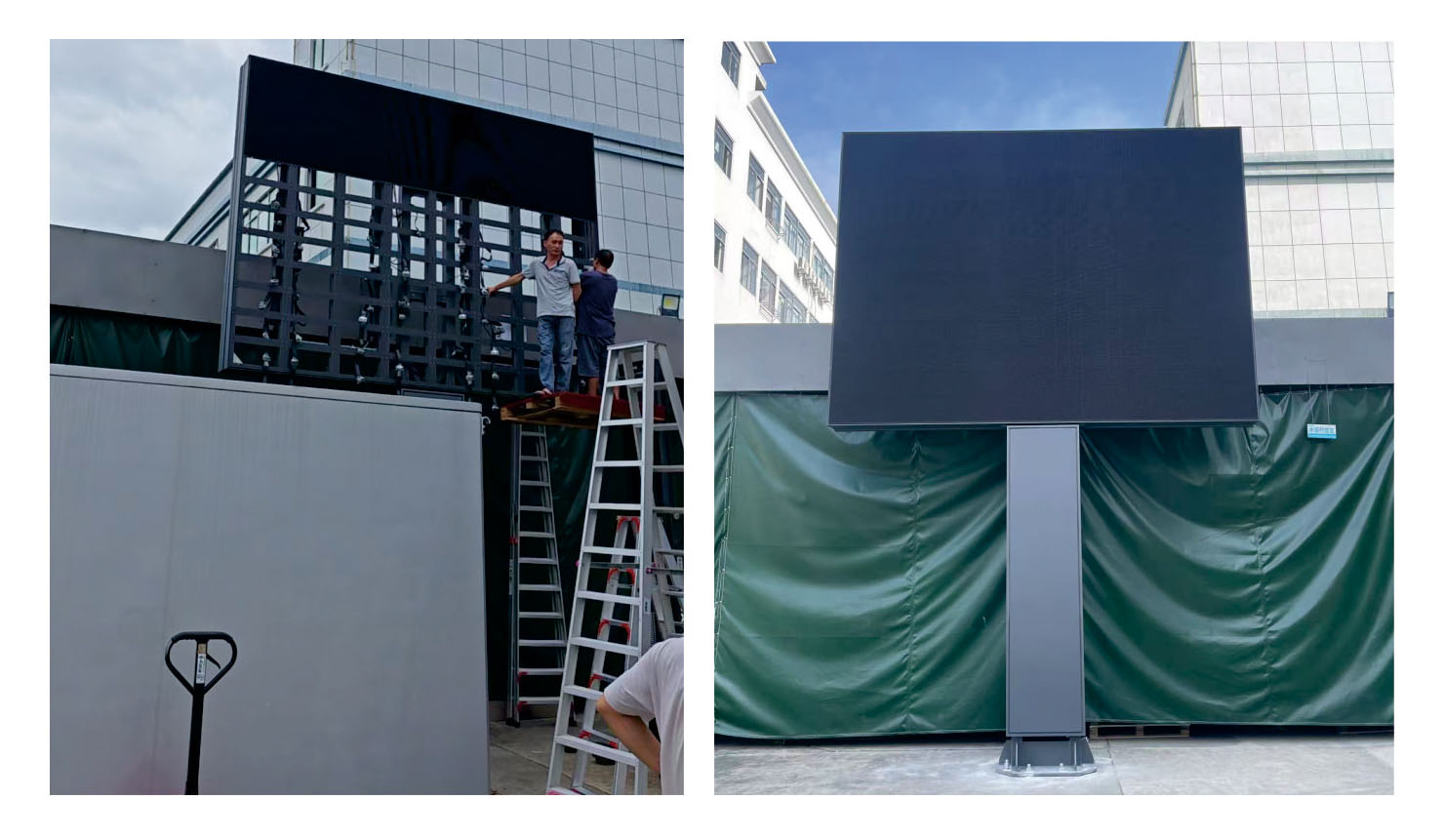

Outdoor LED Billboard Installation
◆ The LED fixed cabinets were configured into a large outdoor LED billboard, offering bright, high-impact visuals. Designed for easy maintenance and continuous operation, it serves as an effective solution for commercial advertising displays.
TECHNICAL SPECIFICATIONS
| Pixel Pitch | 2.967mm | 3.91 mm | 4.81 mm | 5.95mm | 6.25 mm | 5.33 mm | 6.6 mm |
| Pixel Density (dots/m²) | 112,896 | 65,410 | 43,222 | 28,224 | 25,600 | 35,156 | 22,500 |
| LED Type | SMD 1415 | SMD 1921 | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 | SMD 2727 |
| Scan Rate | 1/21 scan | 1/8 scan | 1/9 scan | 1/7 scan | 1/5 scan | 1/6 scan | 1/6 scan |
| Module Size (mm) | 500 x 250 | 320 x 320 | |||||
| Module Resolution (dots) | 168 x 84 | 128 x 64 | 104 x 52 | 84 x 42 | 80 x 40 | 60 x 60 | 48 x 48 |
| Cabinet Size (mm) | 1000 x 1000 x 73 | 960 x 960 x 100 | |||||
| Cabinet Resolution (dots) | 336 x 336 | 256 x 256 | 208 x 208 | 168 x168 | 160 x 160 | 180 x180 | 144 x144 |
| Weight per Cabinet | 22.5 kg | 24.5kg | |||||
| Brightness (cd/m²) | ≥4,500 (8,000-10,000) | ≥5,500 (8,000-10,000) | ≥5,500 (8,000-10,000) | ≥6,500 (8,000-10,000) | ≥6,500 (8,000-10,000) | ≥5,500 | ≥6,000 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 7,680 | 7,680 | 7,680 | 7,680 | 7,680 |
| Max Power (W/m²) | 600-650 | 600-650 | 600-650 | 550 | 500 | 500 | 450 |
| Avg Power (W/m²) | 270 | 270 | 270 | 185 | 175 | 175 | 150 |
| Energy Saving Design | 4.2V Low Voltage | 4.2V Low Voltage | 4.2V Low Voltage | 4.0V Low Voltage | 4.0V Low Voltage | 4.0V Low Voltage | 4.0V Low Voltage |
| Protection (Front/Rear) | Front IP67 /Rear IP65 | ||||||
| Service | Front & Rear Dual Service | ||||||
| AC Voltage | 120/240V (50Hz) | ||||||
